The Nocturn Industries Raptor is a full-featured binocular night vision goggle (NVG) system designed for durability, simplicity, and reliable performance. It uses a single-knob control layout, similar to the L3Harris PVS-31A, allowing users to easily adjust settings while operating in the field. The housing is constructed from carbon-fibre reinforced thermoplastic composite, providing strength comparable to 6061-T6 aluminium while keeping overall weight low.
Controls are designed to be straightforward and intuitive. A double-tap activates the onboard IR illuminator, with a status indicator visible inside the eyepiece. While the illuminator is active, its brightness can be adjusted, and when it is off the same control allows users to adjust image intensifier gain to match changing light conditions.

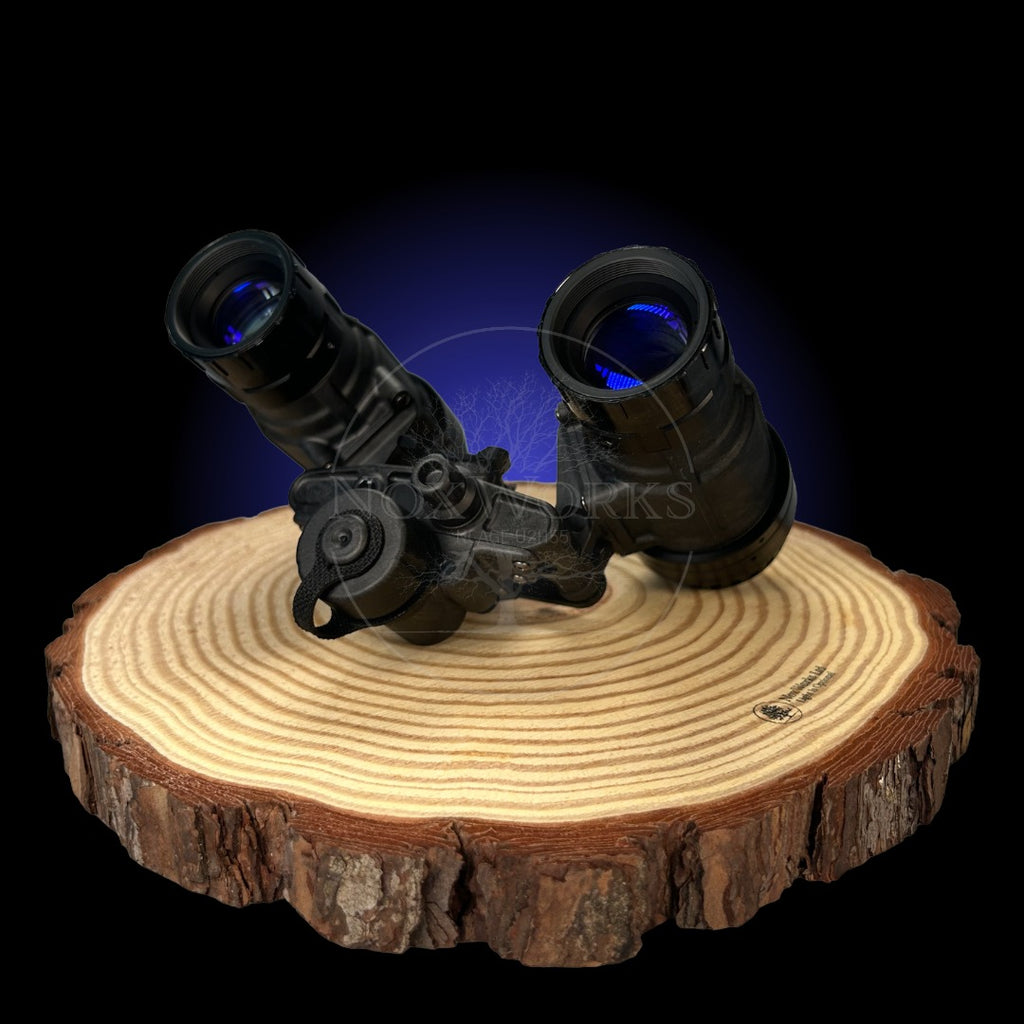

A key feature of the Raptor is its modular optic pods, which can be removed and converted into the **Nocturn Industries Talon monocular platform. The system provides over 20 hours of onboard runtime, with automatic pod shut-off when articulated upward to conserve battery life. For extended use, external power can be connected through an integrated 00B LEMO port
Each unit is professionally assembled and tested using a Hoffman ANV‑126A Night Vision Test Set, with a comprehensive performance test report supplied with every device. We are currently the only night vision retailer within the UK offering systems built on a Hoffman.
Lens Options Brief Overview:
Noctis (Formerly Carson) Milspec Lens Set:
- US Milspec lens meeting MIL-PRF-A3256342A tests
- Excellent light transmission, leading flare suppression and resolution rendering
- Flat low distortion image
- Diopter markings for easy diopter settings
- Industry gold standard
RPO NVD-N 4.0 Lens Set:
- All of the benefits of the legacy RPO 3.0 lens system but with a widened eyepiece with eye relief and eyebox similar to Noctis Milspec lenses
- Paired with RPO 3.0 objective as recommended by RPO, with superior light transmission, excellent centre resolution
- Ultralight - Up to 30% weight savings on any NVG
| Specifications | |
| Material | Injection molded fibre-reinforced polymer |
| Tube Type | 3 contact pad style 18mm MX-11769, 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter. |
| Figure of Merit (FOM) SNR x LP/mm |
Photonis Echo 1800-2200 FOM |
| Weight |
561g with standard milsepc optics and a battery |
| Power Supply | CR123 onboard power, optional 00B LEMO Pack |
| Runtime | 25 hours |
| Lenses | US Milspec |
| Field of View | 40º |
| Individual Pod Power Off | Yes when rotated to side |
| Diopter | Adjustable +2 to -6 |
| Submersion and Dust Rating | Exceeds IP68 (dust and waterproof up to 1.5m) |
| Impact Rating | MIL-STD-810H |
| Mount Style | Built in dovetail mount |
| Onboard IR Illuminator | Yes |
INCLUDED
- Nocturn Industries Raptor Molded Device
- NVG Lens Storage Caps
- Hard Storage Case
- Hoffman test report
- Tube spec sheets
- Nocturn Industries lifetime housing warranty
- 10Year Warranty
If a housing supports manual gain, it will be supplied with that capability. All devices are fully optimized to use their features, there is no need to contact us to enable this option.
For through tube images, spec sheet reviews and one to one consultation, choose the Hand Select option and leave your criteria in the order notes. Note that this is not available for NNVT Image Intensifiers.
Prices are Ex VAT (UK-20%)
Most devices have an average lead time of 7-14days due to production schedule. Your device may be dispatched faster than this.
